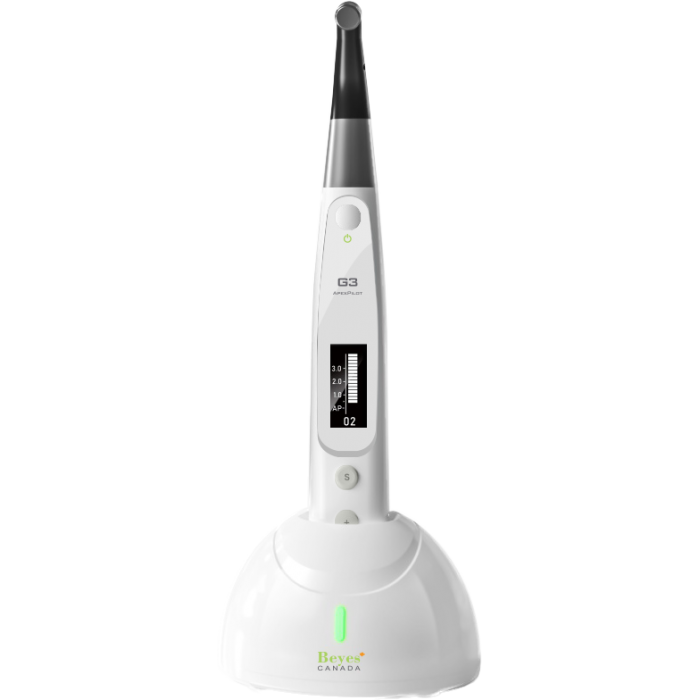

The ApexPilot G3 is a cordless and compact endodontic motor with a built-in apex locator and integrated length measuring function which makes root canal preparation safer and more efficient. The file position will be shown in an easy to read OLED screen and this endodontic motor will automatically reverse or stop as soon as the apical point is reached.
Automatically start when the file is inserted into the canal and stop when the file is taken out. Automatically reverse/stop when the apcal point is reached.
No need to use silicone sleeve to insulate when the endo motor and apex locator are used together. Special aviation grade plastics enable contra-angle to be autoclaved to avoid cross-infection.
Without viewing angle limit, clear display can be guaranteed even under strong light
Wide torque and speed range make it compatible with various file system.
Speed Range | 100rpm~1000rpm |
Torque Range | 0.4-5.0N.cm |
Lithium Battery | 3.7V /2000mAh |
Power Input | ~100V-240V 50Hz/60Hz 400mA Max |
Power Output | DC5V/1A |
Wireless charging Frequency Range | 112-205KHz |
Warranty | 12 Months |
Compatible with the following rotary files:
ApexPilot G2 | ApexPilot G3 |
---|---|
WaveOne | WaveOne |
Protaper | Protaper |
Pathfile | Pathfile |
Reciproc | Reciproc |
Mtwo | Mtwo |
Flex-Master | Flex-Master |
K3 | K3 |
K3XF | K3XF |
TF | TF |
Revo-S | Revo-S |
One Flare | One Flare |
One G | One G |
Hero Gold | Hero Gold |
One Curve | One Curve |
2Shape | 2Shape |
HERO Shaper | HERO Shaper |
R-ENDO | R-ENDO |
iRace | iRace |
BioRace | BioRace |
Gates | Gates |
XPSHAPER | -- |
XPFINISHER | -- |
W3-Pro | W3-Pro |
W3-ONE | W3-ONE |
W3-Single | W3-Single |
W2-Plus | W2-Plus |
W2-ONE | W2-ONE |
W2-Pro | W2-Pro |
Endo-Plus | -- |
W2 | W2 |
